Cable glands

Cable glands for industrial, EMC, Ex or railroad applications as well as cable entry frames with approvals typical for the industry.

Cable entries - inconspicuous and yet indispensable

In the field of electrical installation, cable entries are an indispensable aid. RST has established itself as a specialist in this field over several decades - and not only in Germany. As an owner-managed company, we are active internationally in 47 countries. Our customers particularly appreciate our broad and well-structured range of electrotechnical and mechanical products for use in the field of cable entry and fastening. In addition to a broad portfolio of products for industrial applications, we offer numerous solutions for use in potentially explosive atmospheres as well as for applications in which the issue of electromagnetic compatibility (EMC) plays a decisive role.

Expertise EMC



Highlight: Euro-Top EMC Ampacity

A highlight in terms of perfect derating properties is our EMC cable gland type "Euro-Top EMC Ampacity". It was specially developed to dissipate high electrical fault currents. A highly efficient contact system with the largest possible effective cross-section ensures low-resistance derivation of the current. This is not only interesting for the railroad sector, the wind power sector or for battery and energy storage solutions, but also for many other high-voltage applications.

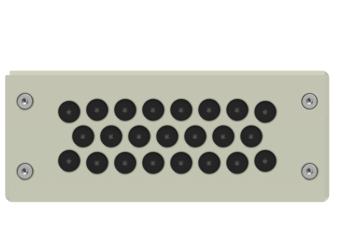

Euro-Top EMC Ampacity

BRM

Material:Polyamide 6, 30% Glass Fibre
Sealing:Polyurethane
O-ring:Polyurethane
IP membrane:Butyl
Intermediate plate:Chloroprene
Einsatztemperatur:from -40°C°C to +80°C°C
Protection Class:IP65

Approvals / Test Reports / Declarations

Something missing? Then please contact us!

You can find an article-specific allocation of approvals at article level or in the cross-reference list.

Data Sheets / Installation Instructions

Something missing? Then please contact us!

Mounting Instruction

Functional video

Shows the functions of the product.



Material: Polyamide 6, 30% Glass Fibre
Article NumberQuantity of InsertsLengthWidthHeightPU *
RAL 7035RAL 9005
BRM00G
BRM00B0 x -148.0060.0013.501
BRM12G
BRM12B12 x 5.0-13.0148.0060.0013.501
BRM14G
BRM14B14 x 5.0-11.0148.0060.0013.501
BRM22G
BRM22B16 x 3.0-6.5 / 4 x 5.0-9.2 / 2 x 8.0-12.5 (22x)148.0060.0013.501
BRM23G
BRM23B23 x 4.0-8.5148.0060.0013.501
BRM29G
BRM29B29 x 4.0-7.0148.0060.0013.501
Unless otherwise stated, all data in millimeters or pieces (quantity)
* Minimum order quantity (MOQ) can be larger than packaging unit (PU).

Cable glands for industrial applications

In the field of industrial electrical installation, cable glands are an indispensable aid. In this field, RST from Wallenhorst near Osnabrück has established itself as a specialist in the cable gland segment: Standard and EMC, for explosion-proof areas, made of metal or plastic, with metric, PG thread or NPT thread as well as without thread. As an owner-managed company, we are now active on an international level and have expanded our business to more than 45 countries. We offer our customers a well-assorted product range in the field of cable glands and accessories.

Expertise and further useful information on EMC cable glands can be found here:

Expertise EMC Cable Glands

Cable glands with flexible thread selection

Cable glands with flexible thread selection

Cable glands are an ideal solution for safely inserting cables and wires - with or without shielding - into electronic housings and for protecting electronic components inside these usually highly sealed housings from damage or undesirable external influences such as dust or moisture. For this reason, we offer a wide range of different cable glands. In order to ensure the most stable connection possible between cables or conductors and enclosures, such as those of an electrical control cabinet, you will find cable glands with different thread types in our product selection:

  • Metric thread, EN 60423
  • PG thread, DIN 40430
  • NPT thread, ANSI B1.20.1

The metric thread - also M-thread - according to EN 60423 is the most common and most sold thread in Europe. Cable glands with armoured conduit thread or PG cable glands are still manufactured, but are increasingly being replaced by metric glands. The third variant is the NPT thread, which is widely used on the American market. The NPT thread is characterized by the fact that it is self-sealing and thus the use of additional sealants can be dispensed with.

Important technical data of our cable glands

Important technical data of our cable glands

The following is a brief overview of other technical data of our cable glands:

Clamping ranges:

  • 2 - 77 mm

protection classes:

  • IP 44
  • IP 54
  • IP 55
  • IP 65
  • IP 66
  • IP 67
  • IP 68
  • IP 69

Temperature ranges:

  • -60 degrees to + 200degrees
Cable glands made of different materials

Cable glands made of different materials

Different materials are used for RST cable glands, depending on the requirements and the application:

  • Cable gland made of polyamide
  • Cable gland made of brass (nickel-plated)
  • Cable gland made of stainless steel

Depending on the purpose and stress, it makes sense to use a cable gland made of plastic or a cable gland made of metal. A cable gland made of brass is preferably used in connection with electromagnetic compatibility.

Cable glands from RST - competence that connects

Cable glands from RST - competence that connects

Our products have the following approvals, among others:

  • UL, VDE, CSA, DNV

and have been tested according to the following standards, among others:

  • EN 62444
  • NEMA 4X (50E)
  • UL 514B
  • CSA C22.2

Due to our many years of experience and expertise in the field of industrial electrical installations, we can offer you individual solutions for your requirements. As an internationally experienced company in the field of cable glands, we offer our business partners a competent and courteous service far beyond the national borders. Our team is always available for your concerns, we look forward to hearing from you!
