Large range of accessories for a wide variety of applications

In the field of cable entry technology, accessories are an indispensable aid. RST has established itself as a specialist in this field over several decades - and not only in Germany. As an owner-managed company, we are active internationally in 47 countries. Our customers particularly appreciate the broad and well-structured selection of accessories for use in the field of cable entry and fastening technology. In addition to a broad portfolio of products for industrial applications, we offer numerous solutions for use in potentially explosive atmospheres as well as for applications in which the issue of electromagnetic compatibility (EMC) plays a decisive role.

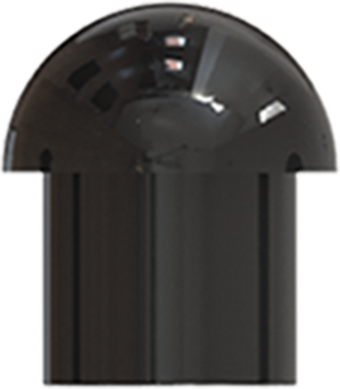

EX PROTECTION TAB X3

Material:	Polyamide 6
Einsatztemperatur:	from -40°C to 70°C
Colour:	RAL 9005

Approvals / Test Reports / Declarations

Something missing? Then please contact us!

You can find an article-specific allocation of approvals at article level or in the cross-reference list.

Data Sheets / Installation Instructions

Something missing? Then please contact us!

Material: Polyamide 6
Article Number		Compatible with clamping range	H1	D1	D	Height	PU *
	82007512X3DS	3-4	12	4.00	9.2	4.00	100
	82007512X3	4-6,5	12,0	6.40	9.2	4.00	100
	82007516X3DS	4-5	14	5.00	10.5	5.00	50
	82007516X3	5-8	13,7	8.00	10.5	4.70	50
	82007517X3DS	4-6	15	7.00	13.3	5.70	50
	82007517X315	6-10	15	9.70	13.3	5.30	50
	82007519X3DS	4-7	14	7.00	15.8	7.50	50
	82007520X3DS	6-7.5	13	8.50	15.8	7.70	50
	82007520X3	7-12	13	12.00	15.8	8.00	50
	82007523X3DS	7-13	14	13.00	15.8	7.50	50
	82007522X3DS	8-11	13,5	11.00	18.0	8.50	50
	82007522X3	11-14	13,5	13.60	18.0	8.70	50
	82007525X3DS	9-13	14,5	13.00	20.0	7.00	50
	82007525X3	12-17	14,5	16.40	19.9	7.30	50
	82007526X3DS	10-13	14	14.00	22.0	9.50	25
	82007526X3	14-18	14	17.80	22.0	10.00	25
	82007532X3DS	12-16	15,5	16.10	24.0	9.00	25
	82007532X3	16-21	15,5	20.40	24.1	9.20	25
	82007533X3DS	14-20	15	19.70	28.5	9.70	25
	82007533X3	19-25	15	25.00	28.5	9.70	25
	82007540X3DS	17-21	15,8	20.50	31.5	9.20	10
	82007540X3	20-28	15,8	27.30	31.5	9.20	10
	82007541X3DS	21-25	17	25.70	36.8	10.70	10
	82007541X3	23-32	17	31.80	36.8	10.70	10
	82007550X3DS	22-31	20,2	30.60	43.3	11.90	10
	82007550X3	31-38	20,2	38.00	43.3	11.90	10
	82007563X3DS	28-35	22,5	34.60	51.0	16.00	10
	82007563X3	35-44	22,5	44.20	51.0	16.00	10
Unless otherwise stated, all data in millimeters or pieces (quantity) * Minimum order quantity (MOQ) can be larger than packaging unit (PU).
