Conduit systems

Conduit systems and fittings for various applications.

Conduit systems - robust and flexible at the same time

As an official distributor of the company FLEXICON, we offer our customers protective hose systems made of metal and plastic as well as the associated hose fittings and accessories. FLEXICON has a broad portfolio of products for use in building technology, production and automation, railroad technology and also for use in potentially explosive atmospheres. In addition, together with FLEXICON, RST offers special solutions for individual requirements such as high mechanical load capacities or chemical resistances. It goes without saying that all products have the usual and, in some cases, application-specific approvals.

Highlight

A special highlight is the Flexicon ULTRA®. This is probably one of the world's best hose fittings. The Flexicon ULTRA® can be used even in the harshest environments and in technically demanding applications and significantly exceeds the requirements of various standards (e.g. in terms of strain relief values). Details about the Flexicon ULTRA® can be found here.

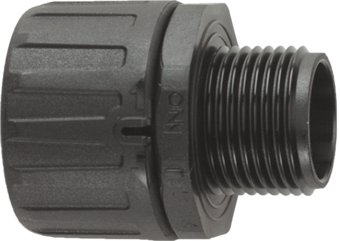

FPA / M

Material:Polyamide 66
Temperatures:from -50°C to 135°C
Protection Class:IP66 (Schlauch berücksichtigen)

Approvals / Test Reports / Declarations

Something missing? Then please contact us!

You can find an article-specific allocation of approvals at article level or in the cross-reference list.

Data Sheets / Installation Instructions

Something missing? Then please contact us!

Material: Polyamide 66
Article NumberEntry ThreadSizeSWLDiDHeightPU
FPA10-M12BM 12 x 1.510199.07.5019.02410
FPA11-M12BM 12 x 1.511199.07.5019.02410
FPA13-M12BM 12 x 1.513239.07.524.02610
FPA10-M16BM 16 x 1.5101911.09.519.02410
FPA13-M16BM 16 x 1.5132311.01124.02610
FPA16-M16BM 16 x 1.5162811.01129.03010
FPA13-M20BM 20 x 1.5132314.012.524.02610
FPA16-M20BM 20 x 1.5162814.014.529.03010
FPA18-M20BM 20 x 1.5183014.014.532.03010
FPA20-M20BM 20 x 1.5203014.014.532.03010
FPA21-M20BM 20 x 1.5213014.014.532.03010
FPA21-M25BM 25 x 1.5213015.019.532.03010
FPA25-M25BM 25 x 1.5253715.019.539.03410
FPA28-M25BM 25 x 1.5284215.019.544.03410
FPA28-M32BM 32 x 1.5284216.026.544.03410
FPA34-M32BM 32 x 1.5344916.026.551.03710
FPA34-M40BM 40 x 1.5344916.032.551.03710
FPA42-M40BM 40 x 1.5426016.032.563.0442
FPA42-M50BM 50 x 1.5426016.063.0442
FPA54-M50BM 50 x 1.5547316.04276.0492
FPA54-M63BM 63 x 1.5547316.05376.0492
FPA67-M63BM 63 x 1.5678716.05390.0541
Unless otherwise stated, all data in millimeters or pieces (quantity)
