Conduit systems

Conduit systems and fittings for various applications.

Conduit systems - robust and flexible at the same time

As an official distributor of the company FLEXICON, we offer our customers protective hose systems made of metal and plastic as well as the associated hose fittings and accessories. FLEXICON has a broad portfolio of products for use in building technology, production and automation, railroad technology and also for use in potentially explosive atmospheres. In addition, together with FLEXICON, RST offers special solutions for individual requirements such as high mechanical load capacities or chemical resistances. It goes without saying that all products have the usual and, in some cases, application-specific approvals.

Highlight: Flexicon ULTRA®

A special highlight is the Flexicon ULTRA®. This is probably one of the world's best hose fittings. The Flexicon ULTRA® can be used even in the harshest environments and in technically demanding applications and significantly exceeds the requirements of various standards (e.g. in terms of strain relief values).

Flexicon ULTRA®

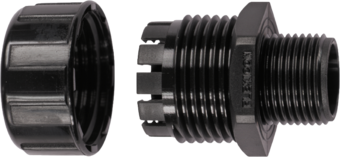

MPC / M

Material:Polyamide 6.6
Temperatures:from -40°C°C to +120°C°C; from -40°C to 120°C
Protection Class:IP66/68 (Schlauch berücksichtigen)
Connecting Thread:Metric
Colour:RAL 9005

Approvals / Test Reports / Declarations

Something missing? Then please contact us!

You can find an article-specific allocation of approvals at article level or in the cross-reference list.

Data Sheets / Installation Instructions

Something missing? Then please contact us!

90° version on request. Supplied with locknut. Fitting is compatible with FPC and LPC conduits.
Material: Polyamide 6.6; Connecting Thread: M
Article NumberEntry ThreadSizeSWLDiDHeightPU *
MPC12-M16BM 16 x 1.5122311.0924.027.0010
MPC16-M16BM 16 x 1.5162511.010.528.029.0010
MPC16-M20BM 20 x 1.5162514.010.528.027.0010
MPC20-M20BM 20 x 1.5203014.014.533.029.0010
MPC25-M25BM 25 x 1.5253715.01942.030.0010
MPC30-M32BM 32 x 1.5304116.024.545.030.0010
MPC32-M32BM 32 x 1.5324516.024.548.032.0010
MPC40-M40BM 40 x 1.5406016.03360.043.002
MPC50-M50BM 50 x 1.5506018.03964.039.002
MPC63-M63BM 63 x 1.5637316.04876.040.001
Unless otherwise stated, all data in millimeters or pieces (quantity)
* Minimum order quantity (MOQ) can be larger than packaging unit (PU).

Flexicon ULTRA

Flyer Flexicon ULTRA

Flexicon main catalog
