Enclosures

made of ABS, polycarbonate, polyester, aluminum and stainless steel for use in industrial as well as hazardous areas.

Enclosures - gladly also finished and equipped

Whether enclosures made of plastic, aluminum or stainless steel: RST offers solutions for almost all requirements - regardless of whether industrial application or use in hazardous areas. We are happy to machine, wire and assemble the enclosures directly, e.g. with terminal blocks, connectors or cable glands. We follow the individual specifications of our customers (e.g. parts lists). In this context, please also refer to the detailed explanations in the section on cable assemblies.

Are you looking for a partner who can supply you not only with individual components but also, if possible, with a fully assembled system? Then you have come to the right place.

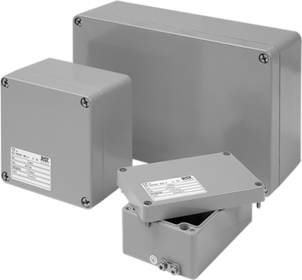

EX ENCLOSURE AL

Material:Aluminium
Sealing:Aluminium
Sealing:Silicone
Temperatures:from -20°C to 40°C
Protection Class:IP66
Colour:RAL 7001

Approvals / Test Reports / Declarations

Something missing? Then please contact us!

You can find an article-specific allocation of approvals at article level or in the cross-reference list.

Data Sheets / Installation Instructions

Something missing? Then please contact us!

Mounting Instruction
Sealing: Aluminium
Article NumberLengthWidthHeight
1506060400058.064.0034
1508080600075.080.0057
1510060400098.064.0034
15101008000100.0100.0080
15121208000122.0120.0080
15121209000122.0120.0090
15130806000125.080.0057
15141409000140.0140.0090
15150604000150.064.0034
15161008000100.0100.0080
15161609000160.0160.0090
15180806000175.080.0057
15181810000180.0180.00100
15201008000200.0100.0080
15201409000200.0140.0090
15202311000200.0230.00110
15202318000200.0230.00180
15221208000220.0120.0080
15221209000220.0120.0090
15231011000230.0100.00110
15250806000250.080.0052
15261609000260.0160.0090
15281810000280.0180.00100
15282311000280.0230.00110
15332311000330.0230.00110
15332318000330.0230.00180
15361208000360.0120.0080
15361609000360.0160.0090
15402311000400.0230.00110
15402323000400.0230.00224
15403111000400.0310.00110
15403114000400.0310.00140
15403118000400.0310.00180
15403123000400.0310.00226
15561609000560.0160.0090
15602311000600.0230.00110
15603111000600.0310.00110
15603118000600.0310.00180
15606020000600.0600.00200
Unless otherwise stated, all data in millimeters or pieces (quantity)
