Enclosures

made of ABS, polycarbonate, polyester, aluminum and stainless steel for use in industrial as well as hazardous areas.

Enclosures - gladly also finished and equipped

Whether enclosures made of plastic, aluminum or stainless steel: RST offers solutions for almost all requirements - regardless of whether industrial application or use in hazardous areas. We are happy to machine, wire and assemble the enclosures directly, e.g. with terminal blocks, connectors or cable glands. We follow the individual specifications of our customers (e.g. parts lists). In this context, please also refer to the detailed explanations in the section on cable assemblies.

Are you looking for a partner who can supply you not only with individual components but also, if possible, with a fully assembled system? Then you have come to the right place.

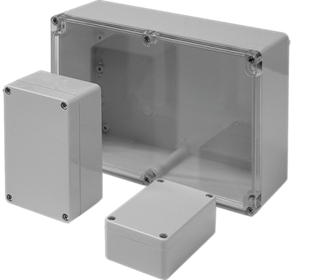

STANDARD ENCLOSURE PC

Material:Polycarbonate
Sealing:Polycarbonate
Sealing:Chloroprene (Silicone on Request)
Temperatures:from -40°C to 100°C
Protection Class:IP66
Colour:ähnlich RAL7035

Approvals / Test Reports / Declarations

Something missing? Then please contact us!

You can find an article-specific allocation of approvals at article level or in the cross-reference list.

Data Sheets / Installation Instructions

Something missing? Then please contact us!

Sealing: Polycarbonate
Article NumberLengthWidthHeight
0205050400052.050.0035
0207050400065.050.0035
0208080600082.080.0055
0208080900082.080.0085
0210060400098.064.0036
02120806000120.080.0055
02120806010120.080.0060
02120809000120.080.0085
02120809010120.080.0090
02121206000122.0120.0055
02121209000122.0120.0085
02121211000122.0120.00105
02160806000160.080.0055
02160806010160.080.0060
02160809000160.080.0085
02160809010160.080.0090
02161208000160.0120.0075
02161209010160.0120.0090
02161214010160.0120.00140
02201208000200.0120.0075
02201209010200.0120.0090
02201508000200.0150.0075
02241210010240.0120.00100
02241609010240.0160.0090
02241612010240.0160.00120
02251609010250.0160.0090
02251612010250.0160.00120
02251615010250.0160.00150
02302307000300.0230.0065
02302309000300.0230.0085
02302311010300.0230.00110
02341510010340.0150.00100
02341512010340.0150.00120
02361610010360.0160.00100
02362015010360.0200.00150
Unless otherwise stated, all data in millimeters or pieces (quantity)
