Conduit systems

Conduit systems and fittings for various applications.

Conduit systems - robust and flexible at the same time

As an official distributor of the company FLEXICON, we offer our customers protective hose systems made of metal and plastic as well as the associated hose fittings and accessories. FLEXICON has a broad portfolio of products for use in building technology, production and automation, railroad technology and also for use in potentially explosive atmospheres. In addition, together with FLEXICON, RST offers special solutions for individual requirements such as high mechanical load capacities or chemical resistances. It goes without saying that all products have the usual and, in some cases, application-specific approvals.

Highlight

A special highlight is the Flexicon ULTRA®. This is probably one of the world's best hose fittings. The Flexicon ULTRA® can be used even in the harshest environments and in technically demanding applications and significantly exceeds the requirements of various standards (e.g. in terms of strain relief values). Details about the Flexicon ULTRA® can be found here.

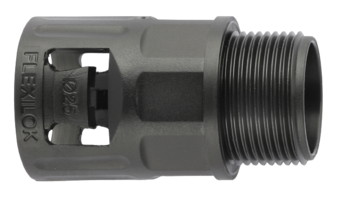

FLK / M

Material:Polyamide 66 (Polypropylene on Request)
Temperatures:from -40°C to 120°C
Protection Class:IP66 (Schlauch berücksichtigen)

Approvals / Test Reports / Declarations

Something missing? Then please contact us!

You can find an article-specific allocation of approvals at article level or in the cross-reference list.

Data Sheets / Installation Instructions

Something missing? Then please contact us!

Material: Polyamide 66 (Polypropylene on Request)
Article NumberEntry ThreadSizeLDiD1DHeightPU
FLK10-M12BM 12 x 1.5109.0815.0013.02610
FLK13-M16BM 16 x 1.51312.01118.0018.03110
FLK16-M16BM 16 x 1.51612.01121.0021.03210
FLK13-M20BM 20 x 1.51314.01125.0018.03110
FLK16-M20BM 20 x 1.51614.014.525.0021.03210
FLK20-M20BM 20 x 1.52014.014.525.0025.03410
FLK21-M20BM 20 x 1.52114.014.527.0026.03510
FLK25-M25BM 25 x 1.52515.019.530.0030.03710
FLK28-M25BM 25 x 1.52815.019.534.0034.03910
FLK34-M32BM 32 x 1.53416.026.541.0041.04210
FLK42-M40BM 40 x 1.54216.032.553.0054.0472
FLK42-M50BM 50 x 1.54216.040.556.0054.0472
FLK54-M50BM 50 x 1.55416.04265.0068.0541
FLK54-M63BM 63 x 1.55416.05369.0068.0541
Unless otherwise stated, all data in millimeters or pieces (quantity)

Flexicon ULTRA

Flyer Flexicon ULTRA

Flexicon main catalog
