Enclosures

made of ABS, polycarbonate, polyester, aluminum and stainless steel for use in industrial as well as hazardous areas.

Enclosures - gladly also finished and equipped

Whether enclosures made of plastic, aluminum or stainless steel: RST offers solutions for almost all requirements - regardless of whether industrial application or use in hazardous areas. We are happy to machine, wire and assemble the enclosures directly, e.g. with terminal blocks, connectors or cable glands. We follow the individual specifications of our customers (e.g. parts lists). In this context, please also refer to the detailed explanations in the section on cable assemblies.

Are you looking for a partner who can supply you not only with individual components but also, if possible, with a fully assembled system? Then you have come to the right place.

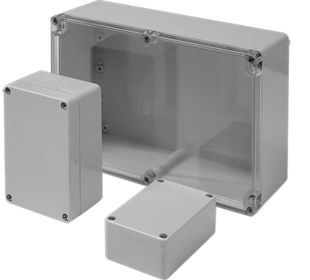

STANDARD ENCLOSURE PC WITH CLEAR LID

Material:Polycarbonate
Sealing:Polycarbonate
Sealing:Chloroprene (Silicone on Request)
Temperatures:from -40°C to 100°C
Protection Class:IP66
Colour:ähnlich RAL7035

Approvals / Test Reports / Declarations

Something missing? Then please contact us!

You can find an article-specific allocation of approvals at article level or in the cross-reference list.

Data Sheets / Installation Instructions

Something missing? Then please contact us!

Sealing: Polycarbonate
Article NumberLengthWidthHeight
0205050404552.050.0035
0207050404565.050.0035
0208080604582.080.0055
0208080904582.080.0085
02120806045120.080.0055
02120809045120.080.0085
02121206045122.0120.0055
02121209045122.0120.0085
02121211045122.0120.00105
02160806045160.080.0055
02160809045160.080.0085
02161208045160.0120.0075
02161209045160.0120.0090
02161214045160.0120.00140
02201208045200.0120.0075
02201209045200.0120.0090
02201508045200.0150.0075
02241210045240.0120.00100
02241609045240.0160.0090
02241612045240.0160.00120
02251609045250.0160.0090
02302309045300.0230.0085
02302311045300.0230.00110
02341510045340.0150.00100
02362015045360.0200.00150
Unless otherwise stated, all data in millimeters or pieces (quantity)
