Enclosures

made of ABS, polycarbonate, polyester, aluminum and stainless steel for use in industrial as well as hazardous areas.

Enclosures - gladly also finished and equipped

Whether enclosures made of plastic, aluminum or stainless steel: RST offers solutions for almost all requirements - regardless of whether industrial application or use in hazardous areas. We are happy to machine, wire and assemble the enclosures directly, e.g. with terminal blocks, connectors or cable glands. We follow the individual specifications of our customers (e.g. parts lists). In this context, please also refer to the detailed explanations in the section on cable assemblies.

Are you looking for a partner who can supply you not only with individual components but also, if possible, with a fully assembled system? Then you have come to the right place.

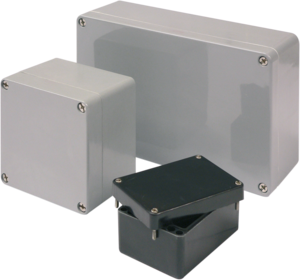

STANDARD ENCLOSURE PES

Material:Polyester (glass fibre reinforced/thermoset)
Sealing:Polyester (glass fibre reinforced/thermoset)
Sealing:Chloroprene (Silicone on Request)
Temperatures:from -40°C to 100°C
Protection Class:IP66
Colour:RAL 7000

Approvals / Test Reports / Declarations

Something missing? Then please contact us!

You can find an article-specific allocation of approvals at article level or in the cross-reference list.

Data Sheets / Installation Instructions

Something missing? Then please contact us!

Sealing: Polyester (glass fibre reinforced/thermoset)
Article NumberLengthWidthHeight
0706060401055.055.0037
0706060601055.055.0059
0708080601080.075.0055
0708080801080.075.0075
07110806010110.075.0055
07110808010110.075.0075
07121209010122.0120.0090
07160806010160.075.0055
07160808010160.075.0075
07161609010160.0160.0090
07190806010190.075.0055
07190808010190.075.0075
07221209010220.0120.0090
07230806010230.075.0055
07230808010230.075.0075
07261609010260.0160.0090
07262512010255.0250.00120
07262516010255.0250.00160
07321008010320.0100.0080
07361609010360.0160.0090
07363609010360.0360.0090
07402512010400.0250.00120
07402516010400.0250.00160
07404112010400.0405.00120
07561609010560.0160.0090
07602512010600.0250.00120
Unless otherwise stated, all data in millimeters or pieces (quantity)
