Pressure Equalisation Solutions

Pressure balance elements and pressure balance cable glands to prevent the formation of condensation in electronic and electrotechnical components.

Pressure compensation elements - a must for high degrees of protection

Condensation forms quickly in particularly tight enclosures because humidity cannot escape. Sweating enclosures are particularly prevalent in locations with changing temperatures. Temperature fluctuations inside enclosures also lead to condensation - the more often, the more damaging it is for the equipment. Short circuits can be the result, as can complete equipment failure due to the loss of IP protection. An easy-to-install element, which in most cases is equipped with a gas-permeable and hydrophobic as well as oleophobic special membrane foil, can be used to create an appropriate pressure equalization.

Expertise PBE



Pressure balance elements with valve function

Our new VSD, ARSD and ARVSD safety pressure equalization elements are a special highlight. In addition to the pressure equalization function, which prevents the formation of condensation water, these offer another important function. If the pressure is too high, the system opens up and allows hot gases to escape to the outside (e.g. in the event of a thermal runaway). This reliably prevents the possible explosion of a battery or inverter housing, for example.

Safety Pressure Equalisation Solutions

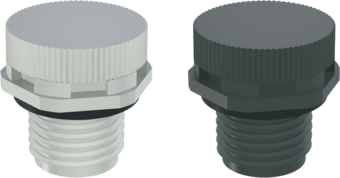

DAE PA

Material:Polyamide 6
Flat seal:NBR
Membrane:Acryl-CoPolymer
Einsatztemperatur:from -40°C to 100°C
Protection Class:IP66/68/69K
Connecting Thread:Metric

Approvals / Test Reports / Declarations

Something missing? Then please contact us!

You can find an article-specific allocation of approvals at article level or in the cross-reference list.

Data Sheets / Installation Instructions

Something missing? Then please contact us!

Mounting Instruction

Functional video

Shows the functions of the product.



Product Video

For general product illustration.

Material: Polyamide 6; Connecting Thread: M
Article NumberMembrane
Type
Air flow
δ=min. 70 mbar l/h
Entry ThreadSWLH max.PU *
RAL 7035RAL 9005
11086512
13086512S16M 12 x 1.5176.07.601
11087112
13087112S16M 12 x 1.0176.67.601
11087512
13087512S16M 12 x 1.51710.07.601
Unless otherwise stated, all data in millimeters or pieces (quantity)
* Minimum order quantity (MOQ) can be larger than packaging unit (PU).
