Pressure Equalisation Solutions

Pressure balance elements and pressure balance cable glands to prevent the formation of condensation in electronic and electrotechnical components.

Pressure compensation elements - practically a must for high degrees of protection.

Condensation forms quickly in particularly tight enclosures because humidity cannot escape. Sweating enclosures are particularly prevalent in locations with changing temperatures. Temperature fluctuations inside enclosures also lead to condensation - the more often, the more damaging it is for the equipment. Short circuits can be the result, as can complete equipment failure due to the loss of IP protection. An easy-to-install element, which in most cases is equipped with a gas-permeable and hydrophobic as well as oleophobic special membrane foil, can be used to create an appropriate pressure equalization.

Expertise PBE



Highlight: Pressure balance elements with valve function

Our new VSD, ARSD and ARVSD safety pressure equalization elements are a special highlight. In addition to the pressure equalization function, which prevents the formation of condensation water, these offer another important function. If the pressure is too high, the system opens up and allows hot gases to escape to the outside (e.g. in the event of a thermal runaway). This reliably prevents the possible explosion of a battery or inverter housing, for example.

Safety Pressure Equalisation Solutions

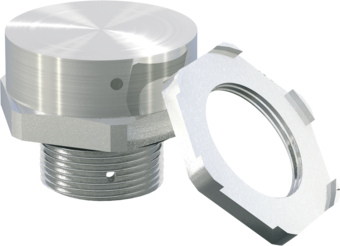

DPE METAL

Material:Nickel Plated Brass; Aluminium; Stainless Steel 1.4404; Brass
O-ring:NBR
Temperatures:from -30°C to 80°C
Protection Class:IP66*
Connecting Thread:Metric; NPT

Approvals / Test Reports / Declarations

Something missing? Then please contact us!

You can find an article-specific allocation of approvals at article level or in the cross-reference list.

Data Sheets / Installation Instructions

Something missing? Then please contact us!

Mounting Instruction

Functional video

Shows the functions of the product.



Material: Nickel Plated Brass; Connecting Thread: M
Article NumberEntry ThreadSWSW1LHeightPU
75000521M 20 x 1.5292815.013.001
75000526M 25 x 1.5353315.013.001
Unless otherwise stated, all data in millimeters or pieces (quantity)
Material: Nickel Plated Brass; Connecting Thread: NPT
Article NumberEntry ThreadSWSW1LHeightPU
75000013NPT 1/2 "292815.013.001
75000035NPT 3/4 "353315.013.001
Unless otherwise stated, all data in millimeters or pieces (quantity)
Material: Aluminium; Connecting Thread: M
Article NumberEntry ThreadSWSW1LHeightPU
74000521M 20 x 1.5292815.013.001
74000526M 25 x 1.5353315.013.001
Unless otherwise stated, all data in millimeters or pieces (quantity)
Material: Aluminium; Connecting Thread: NPT
Article NumberEntry ThreadSWSW1LHeightPU
74000013NPT 1/2 "292815.013.001
74000035NPT 3/4 "353315.013.001
Unless otherwise stated, all data in millimeters or pieces (quantity)
Material: Stainless Steel 1.4404; Connecting Thread: M
Article NumberEntry ThreadSWSW1LHeightPU
76000521M 20 x 1.5292815.013.001
76000526M 25 x 1.5353315.013.001
Unless otherwise stated, all data in millimeters or pieces (quantity)
Material: Stainless Steel 1.4404; Connecting Thread: NPT
Article NumberEntry ThreadSWSW1LHeightPU
76000013NPT 1/2 "292815.013.001
76000035NPT 3/4 "353315.013.001
Unless otherwise stated, all data in millimeters or pieces (quantity)
Material: Brass; Connecting Thread: M
Article NumberEntry ThreadSWSW1LHeightPU
77000521M 20 x 1.5292815.013.001
77000526M 25 x 1.5353315.013.001
Unless otherwise stated, all data in millimeters or pieces (quantity)
Material: Brass; Connecting Thread: NPT
Article NumberEntry ThreadSWSW1LHeightPU
77000013NPT 1/2 "292815.013.001
77000035NPT 3/4 "353315.013.001
Unless otherwise stated, all data in millimeters or pieces (quantity)
