Pressure Equalisation Solutions

Pressure balance elements and pressure balance cable glands to prevent the formation of condensation in electronic and electrotechnical components.

Pressure compensation elements - practically a must for high degrees of protection.

Condensation forms quickly in particularly tight enclosures because humidity cannot escape. Sweating enclosures are particularly prevalent in locations with changing temperatures. Temperature fluctuations inside enclosures also lead to condensation - the more often, the more damaging it is for the equipment. Short circuits can be the result, as can complete equipment failure due to the loss of IP protection. An easy-to-install element, which in most cases is equipped with a gas-permeable and hydrophobic as well as oleophobic special membrane foil, can be used to create an appropriate pressure equalization.

Expertise and further useful information on pressure equalization elements and drainage nozzles can be found here!

Highlight

Our new VSD, ARSD and ARVSD safety pressure equalization elements are a special highlight. In addition to the pressure equalization function, which prevents the formation of condensation water, these offer another important function. If the pressure is too high, the system opens up and allows hot gases to escape to the outside (e.g. in the event of a thermal runaway). This reliably prevents the possible explosion of a battery or inverter housing, for example. Details on our safety pressure equalization elements can be found here.



The RST Pressure Balance Calculator

Easily calculate the type and number of pressure compensation solutions that make sense for your application.

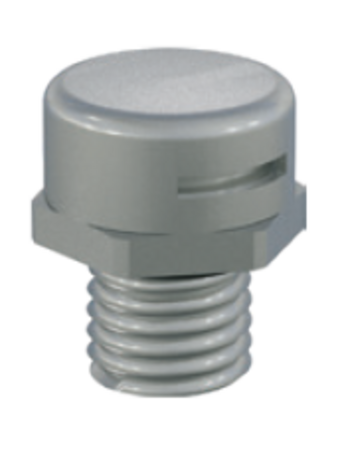

UL-DAE ES

Material:Stainless Steel 303
O-ring:
Temperatures:from -40°C to 105°C
Protection Class:IP66/67/69K
Connecting Thread:Metric

Approvals / Test Reports / Declarations

Something missing? Then please contact us!

You can find an article-specific allocation of approvals at article level or in the cross-reference list.

Data Sheets / Installation Instructions

Something missing? Then please contact us!

Mounting Instruction

Functional video

Shows the functions of the product.



Material: Stainless Steel 303; Connecting Thread: M
Article NumberMembrane
Type
Air flow
δ=min. 70 mbar l/h
Entry ThreadSWLDH max.PU
90000512HLDH120M 12 x 1.51710.018.8011.001
Unless otherwise stated, all data in millimeters or pieces (quantity)
