Pressure Equalisation Solutions

Pressure balance elements and pressure balance cable glands to prevent the formation of condensation in electronic and electrotechnical components.

Pressure compensation elements - a must for high degrees of protection

Condensation forms quickly in particularly tight enclosures because humidity cannot escape. Sweating enclosures are particularly prevalent in locations with changing temperatures. Temperature fluctuations inside enclosures also lead to condensation - the more often, the more damaging it is for the equipment. Short circuits can be the result, as can complete equipment failure due to the loss of IP protection. An easy-to-install element, which in most cases is equipped with a gas-permeable and hydrophobic as well as oleophobic special membrane foil, can be used to create an appropriate pressure equalization.

Expertise PBE



Pressure balance elements with valve function

Our new VSD, ARSD and ARVSD safety pressure equalization elements are a special highlight. In addition to the pressure equalization function, which prevents the formation of condensation water, these offer another important function. If the pressure is too high, the system opens up and allows hot gases to escape to the outside (e.g. in the event of a thermal runaway). This reliably prevents the possible explosion of a battery or inverter housing, for example.

Safety Pressure Equalisation Solutions

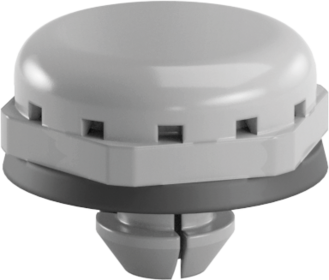

SNAP-DAE 2. GEN. / 11086013G2

Order online via Marketplaces

Request form

List Price:: 216.10 € / 100 pcs
Material Group: 503 DAE Standard

Here you can enter your required quantity and check whether this is available.

Please enter the desired item quantity in the input field and then press the "Enter key". If the traffic light jumps to "green", the quantity can be delivered at short notice. If it jumps to "red", the item is currently sold out. In this case, please contact our customer service to inquire about the delivery time.




Pictures / Drawings

Technical data

MaterialPolyamide 6
Flat sealNBR
MembraneAcryl-CoPolymer
Einsatztemperaturfrom -40°C to 100°C
Protection ClassIP68 (M8) / IP66/68 (M12)
Membrane
Type
M
Air flow
δ=min. 70 mbar l/h
25
SizeM12
SW17
L7.5 mm
Height6.15
PU1

Product documentation

Approvals / Test Reports / Declarations



Data Sheets / Mounting Instructions

Article Card
Mounting Instruction


3D - Model

Is something missing? Then please feel free to contact us!
